Hewlett Packard

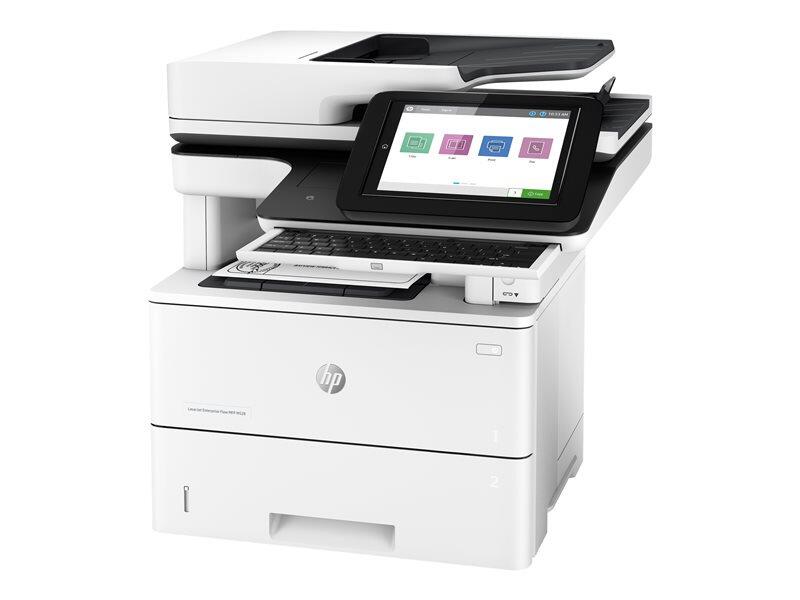

HP LaserJet Enterprise Flow MFP M528z

Code: M528Z

Description

HP LaserJet Enterprise Flow MFP M528z

Main Specifications

Product Description	HP LaserJet Enterprise Flow MFP M528z - multifunction printer - B/W
Device Type	Multifunction printer
Fax Type	Plain paper
Localisation	English, German, French, Italian, Spanish / Europe
Printing Technology	Laser (monochrome)
Monthly Duty Cycle (max)	150000 pages
Recommended Monthly Volume	2000 - 7500 pages
Max Copying Speed	Up to 43 ppm
Max Copying Resolution	Up to 600 x 600 dpi
Max Printing Speed	Up to 43 ppm
Max Printing Resolution	Up to 1200 x 1200 dpi
Max Fax Transmission Speed	33.6 Kbps
Fax Resolutions	203 x 98 dpi, 203 x 196 dpi, 300 x 300 dpi, 203 x 392 dpi
Scanning	600 x 600 dpi
Display	8"
Original Size	105 x 127 mm (min) - Legal (216 x 356 mm)/A4 (210 x 297 mm) (max)
Original Type	Sheets
Document Feeder Capacity	100 sheets
Media Size	76 x 127 mm (min) - Legal (216 x 356 mm), A4 (210 x 297 mm) (max)
Media Type	Transparencies, envelopes, plain paper, labels, recycled paper, bond paper, card stock, punched paper, preprinted paper
Standard Media Capacity	650 sheets
Max Media Capacity	2300 sheets
Bypass Feeder Capacity	100 sheets
Output Trays Capacity	250 sheets
Stapler	Included
Automatic Duplexing	Yes (copying) Yes (printing) Yes (scanning)
Connection Availability	Yes
Interface	USB 2.0, Gigabit LAN, Wi-Fi(n), NFC, USB 2.0 host
AirPrint Enabled	Yes
Office Machine Features	Print from USB flash drive, save to USB flash drive, Internet faxing, scan to e-mail, Hard Disk Drive Encryption, save to network folder, HP EveryPage, HP High-Performance Secure Hard Disk, pull-out keyboard, Instant-on Technology, touch-to-print, scan to FTP, scan to SharePoint, scan to OCR, ultrasonic multi-feed detection, security lock slot
Power	AC 230 V (50/60Hz)
Dimensions (WxDxH)	48.2 cm x 49.6 cm x 49.7 cm
Weight	22.13 kg
Environmental Standards	ENERGY STAR Qualified, Blue Angel
Manufacturer Warranty	1-year warranty

Associated Documents

What's in the box

HP LaserJet Enterprise Flow MFP M528z
Cartridge - black

Extended Specification

General
Printer Fonts	TrueType x 105 PostScript 3 x 92
Device Type	Multifunction printer
Fax Type	Plain paper
Printing Technology	Laser - monochrome
Monthly Duty Cycle (max)	150000 pages
Recommended Monthly Volume	2000 - 7500 pages
Display Diagonal Size	8"
Display Colour Support	Colour
Display Features	Touch screen
Connection Availability	Yes
Interface	USB 2.0, Gigabit LAN, Wi-Fi(n), NFC, USB 2.0 host
AirPrint Enabled	Yes
Office Machine Features	Print from USB flash drive, save to USB flash drive, Internet faxing, scan to e-mail, Hard Disk Drive Encryption, save to network folder, HP EveryPage, HP High-Performance Secure Hard Disk, pull-out keyboard, Instant-on Technology, touch-to-print, scan to FTP, scan to SharePoint, scan to OCR, ultrasonic multi-feed detection, security lock slot
Localisation	English, German, French, Italian, Spanish / Europe

Memory
Standard Memory	1.75 GB
Max Supported Memory	2.5 GB
Hard Disk Drive	320 GB
Supported Flash Memory	USB flash drive

Copying
Max Copying Speed	Up to 43 ppm
Max Copying Resolution	Up to 600 x 600 dpi
Max Document Enlargement	400%
Max Document Reduction	25%
Maximum Copies	9999
Automatic Duplexing	Yes
Copying Features	Booklet creation, auto colour select, collation copy, Job Build, Book Copy, job storage, edge-to-edge, ID Copy

Printing
Max Printing Resolution	Up to 1200 x 1200 dpi
Max Printing Speed	Up to 43 ppm
Printer Drivers / Emulations	PCL 6, PostScript 3, PDF 1.7, PCL 5
Image Enhancement Technology	HP FastRes 1200, HP ProRes 1200
Automatic Duplexing	Yes
First Print Out Time B/W	6 sec

Scanning
Scan Element	CIS
Automatic Duplexing	Yes
Optical Resolution	600 x 600 dpi
Grayscale Depth	8-bit
Colour Depth	24-bit

Fax Machine
Max Transmission Speed	33.6 Kbps
Fax Resolutions	203 x 98 dpi, 203 x 196 dpi, 300 x 300 dpi, 203 x 392 dpi
Total Memory Capacity	Up to 500 pages
Fax Printing Resolution	400 x 400 dpi
PC Faxing	Yes

Fax Machine Features
Speed Dialing	1000 station(s)
Broadcast Transmission	210 stations
Remote Fax Retrieval (Polling)	Yes
Features	Fax forwarding, automatic redialing, junk fax barrier, LAN fax, auto reduction, poll receive, fax archiving

Document & Media Handling
Min Original Size	105 x 127 mm
Max Original Size	Legal (216 x 356 mm)/A4 (210 x 297 mm)
Original Type	Sheets
Document Feeder Capacity	100 sheets
Min Media Size	76 x 127 mm
Max Media Size	A4/Legal
Min Media Weight	45 g/m²
Max Media Weight	200 g/m²
Min Media Weight (lb)	12 lbs
Max Media Weight (lb)	53 lbs
Supported Media Type	Transparencies, envelopes, plain paper, labels, recycled paper, bond paper, card stock, punched paper, preprinted paper
Supported Media Sizes	ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A6 (105 x 148 mm), 100 x 150 mm, 216 x 297 mm, 101.6 x 152.4 mm, 76 x 127 mm, Oficio (216 x 343 mm), 215.9 x 330.2 mm, 127 x 203.2 mm, 102 x 148 mm
Supported Envelope Sizes	International DL (110 x 220 mm), International C5 (162 x 229 mm), International B5 (176 x 250 mm)
Standard Media Capacity	650 sheets
Max Media Capacity	2300 sheets
Bypass Feeder Capacity	100 sheets
Output Trays Capacity	250 sheets
Document & Media Handling Details	Bypass tray - 100 sheets size:76 x 127 mm - Legal (216 x 356 mm) weight:60 g/m² - 200 g/m²; weight (lbs):16 lbs - 53 lbs Input tray - 550 sheets size:102 x 148 mm - 216 x 297 mm weight:60 g/m² - 120 g/m²; weight (lbs):16 lbs - 32 lbs ADF - 100 sheets size:105 x 127 mm - Legal (216 x 356 mm) weight:45 g/m² - 200 g/m²; weight (lbs):12 lbs - 53 lbs Output tray - 250 sheets
Speed Details	Printing:up to 43 ppm (A4) - B/W (ISO) Printing:up to 45 ppm (Letter A) - B/W (ISO) Printing:up to 34 ipm (A4) - B/W duplex Printing:up to 65 ppm (A5) - B/W landscape Scanning:up to 45 ppm (A4) - B/W normal Scanning:up to 45 ppm (A4) - colour normal Scanning:up to 64 ipm (A4) - B/W duplex normal Scanning:up to 58 ipm (A4) - colour duplex

Finishing Equipment
Stapler	Included

Connections
Interfaces	2 x USB 2.0 host - 4 pin USB Type A 1 x USB 2.0 - 4 pin USB Type B 1 x Gigabit LAN - RJ-45 1 x modem - RJ-11
Security Protocols & Features	Kerberos, SSL, Apple Bonjour, TLS, IPsec, 802.1x, EAP-TLS, PEAP
Operating System Support	HP-UX 11.x, SunSoft Solaris 2.5 or later, MS Windows XP SP2 or later, Apple Mac OS X 10.5, HP-UX 11i, Novell NetWare 5.1, Apple Mac OS X 10.6, Red Hat Linux 7.x or later, SUSE Linux 8.x or later, IBM AIX 3.2.5 or later, Apple Mac OS X 10.7, MS Windows Server 2008 R2 x64 Edition, MS Windows Server 2003 SP1 or later, Apple Mac OS X 10.8.x, HP-UX 10.20, MS Windows XP 64-bit Edition SP2 or later, Apple Mac OS X 10.8, MS Windows Server 2012, MS Windows Server 2012 x64 Edition, Apple Mac OS X 10.6.8, MS Windows Server 2003 x64 Edition SP1 or later, MS Windows Server 2012 R2, Apple Mac OS X 10.7.5, MS Windows Server 2008 (32/64-bits), Apple Mac OS X 10.9.x, MS Windows Vista (32/64 bits), MS Windows 7 (32/64 bits), HP MPE/iX, Windows 8 Enterprise, Windows 8 Enterprise 64-bit, Windows 8 Enterprise N, Windows 8 Enterprise N 64-bit, Windows 8 (32/64-bits), Windows 8.1 (32/64-bits)
Software Included	Drivers & Utilities, HP Update, HP Device Experience (DXP), HP Send Fax, Product Registration Assist, HP Connected, HP Software Installer/Uninstaller

Power
Voltage Required	AC 230 V (50/60Hz)
Power Consumption Operational	629 Watt
Power Consumption Standby	28.8 Watt
Power Consumption Sleep	5.3 Watt

Miscellaneous
Consumables Included	1 x toner cartridge (black)
Compliant Standards	FCC Class A certified, UL, cUL, GS, FCC Part 68, CS-03, R&TTE, Laser Class 1, FCC CFR47 Part 15, EN 60825-1, CECP, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, EN55024:1998 + A1 + A2, NOM-151-SCTI-1999, IEC 62479, IEC 60825-1:2007, EN 62479:2010, EMC 2004/108/EC, LVD 2006/95/EC, EN55022:2010 Class A, ETSI ES203 021, ICES-003 issue 4, CISPR 22:2008, IEC60950-1:2005+A1, EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Security Slot Type	Kensington security slot
